Pull behind equipment for lawn mowers or tractors to loosen the infill of artificial turf

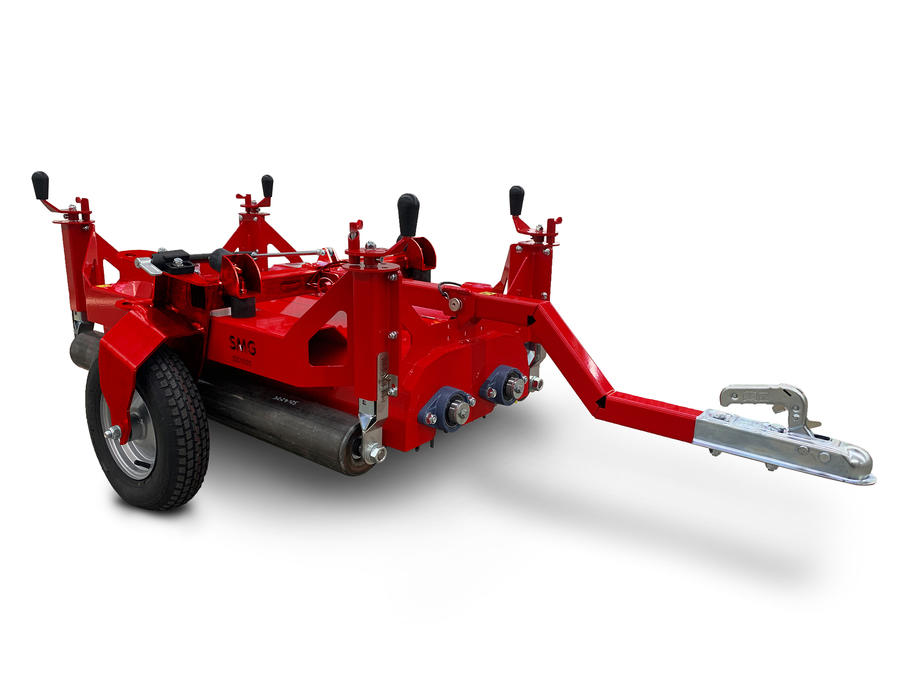

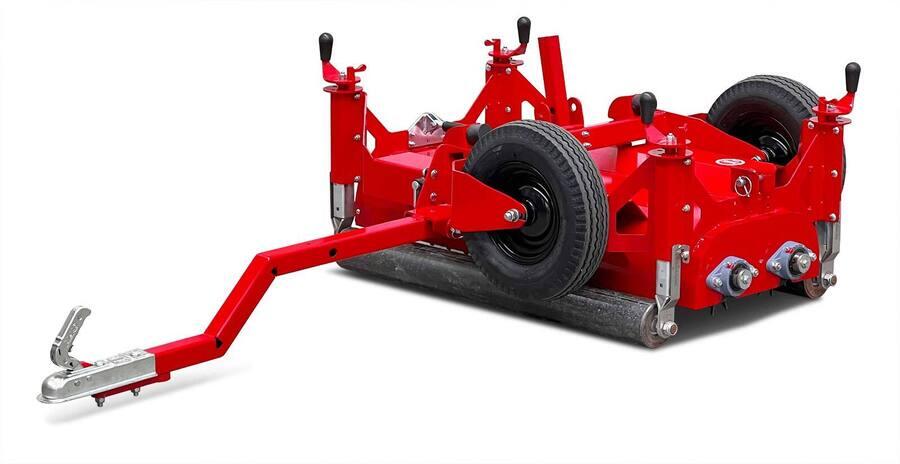

Areas of application are e.g. long-pile football turf and short-pile tennis turf. Two ground-driven spiked rollers with a special gear ratio loosen the infill material in the artificial turf and straighten its fibers. The working depth can be precisely adjusted using 4 adjusting spindles and 2 feeler rollers. The drawbar has a hitch / bracket combination, which means that the DC1000 can be pulled by various devices. The drawbar can be moved from the working position to the transport position. For transport purposes, the device can be completely lifted out over the chassis.
Functional
Chassis with 2 in 1 drawbar
Effective

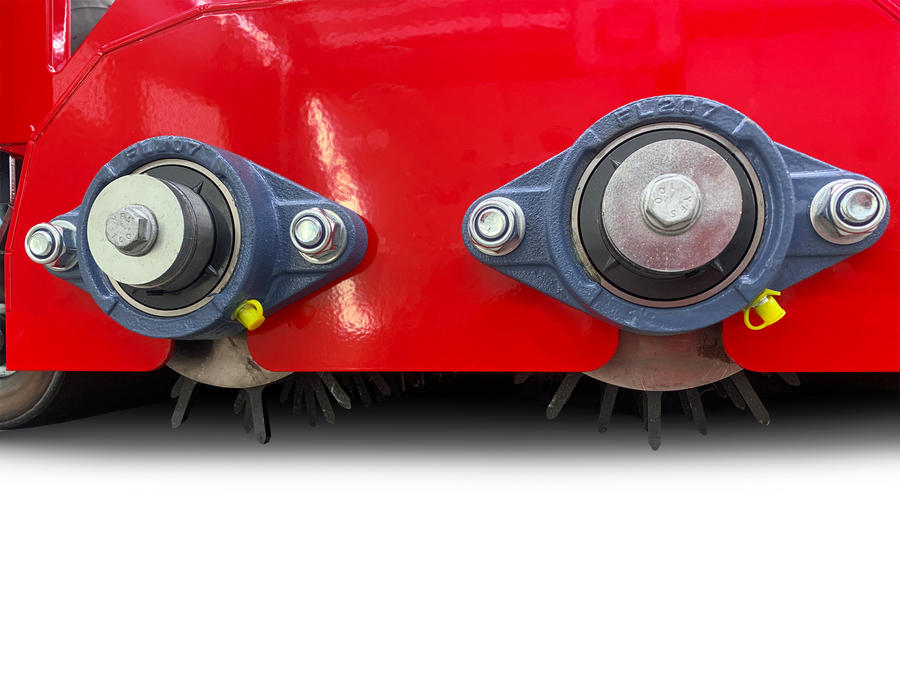

Pair of spiked rollers with translation
Gentle

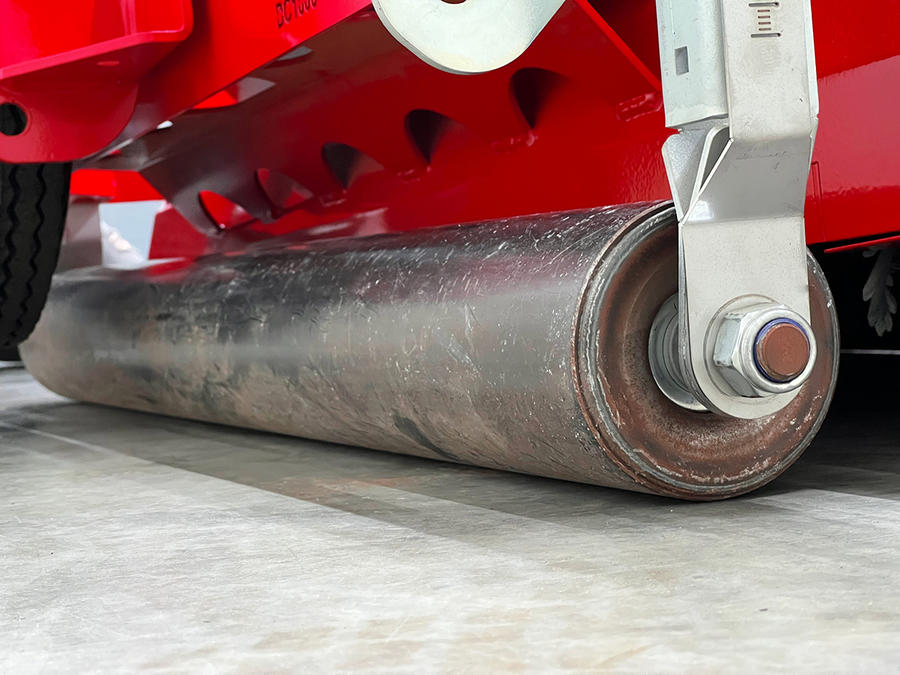

Roller for minimum ground pressure
Precision

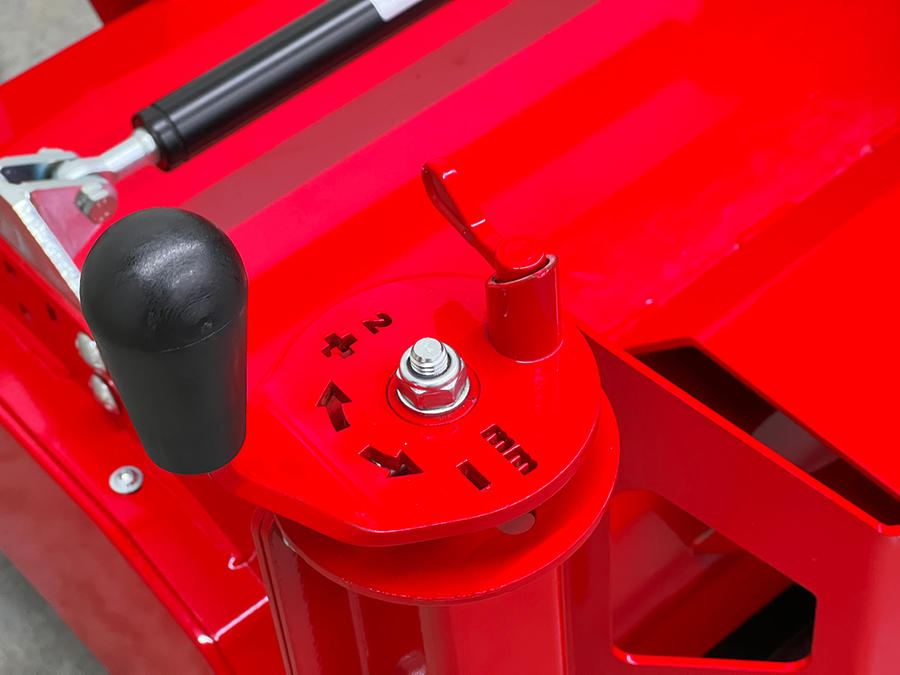

Spindles to adjust and lock the working depth
Control

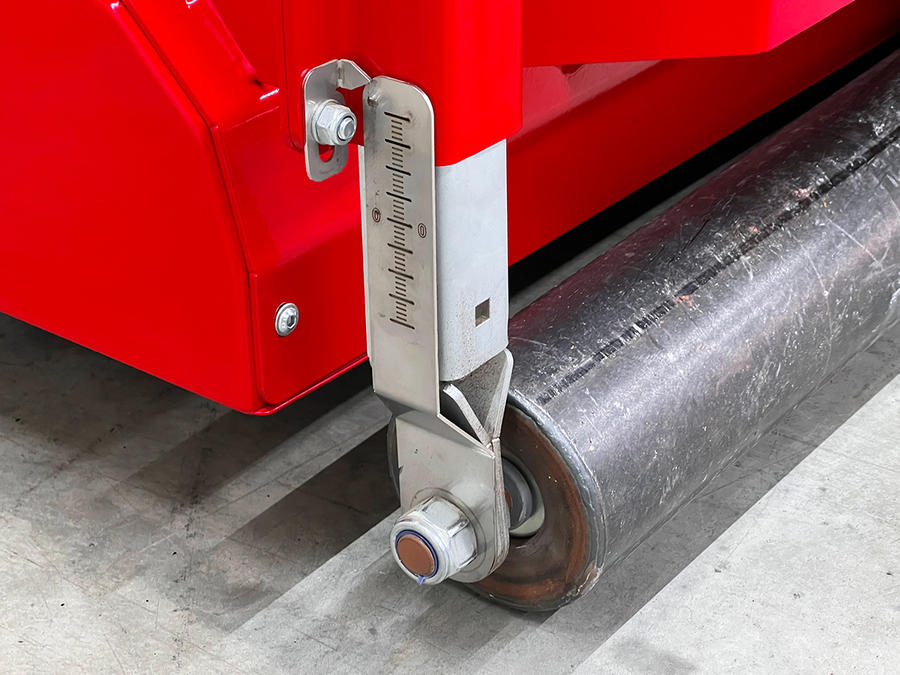

Scale to control working depth and level
Optional

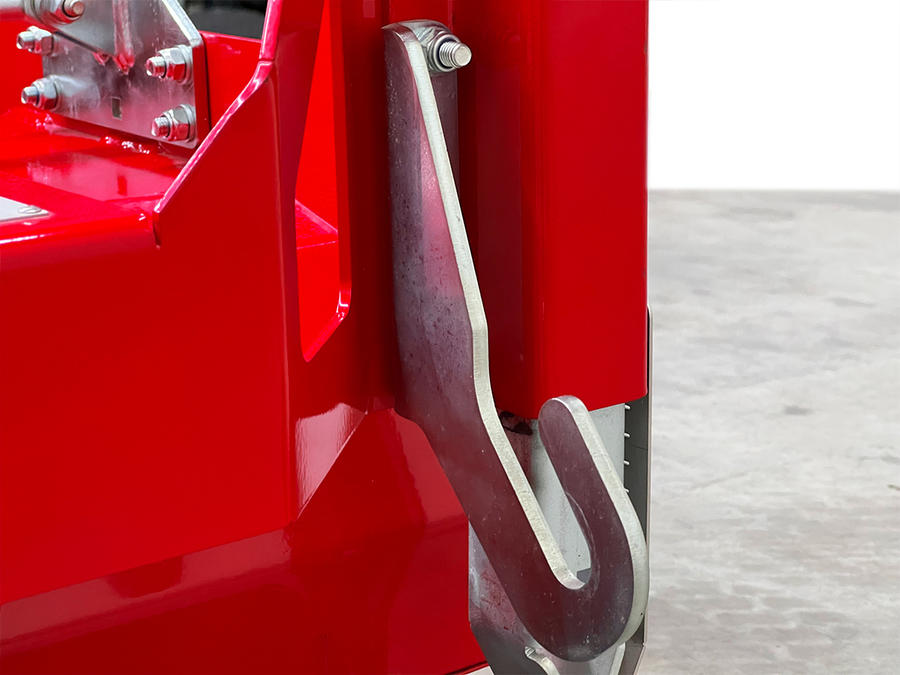

Hook for optional rear brush
Technical information:
| Working width | 1,000 mm |
| Weight | 230 kg |
| Dimensions | L 1,905 x W 1,023 x H 730 mm |
| Shipping dimensions | L 1,440 x W 1,150 x H 980 mm |
