Fully automatic continuous mixer for binder and rubber granules,
prepared for connection of additional material component (gravel unit or PU-unit).

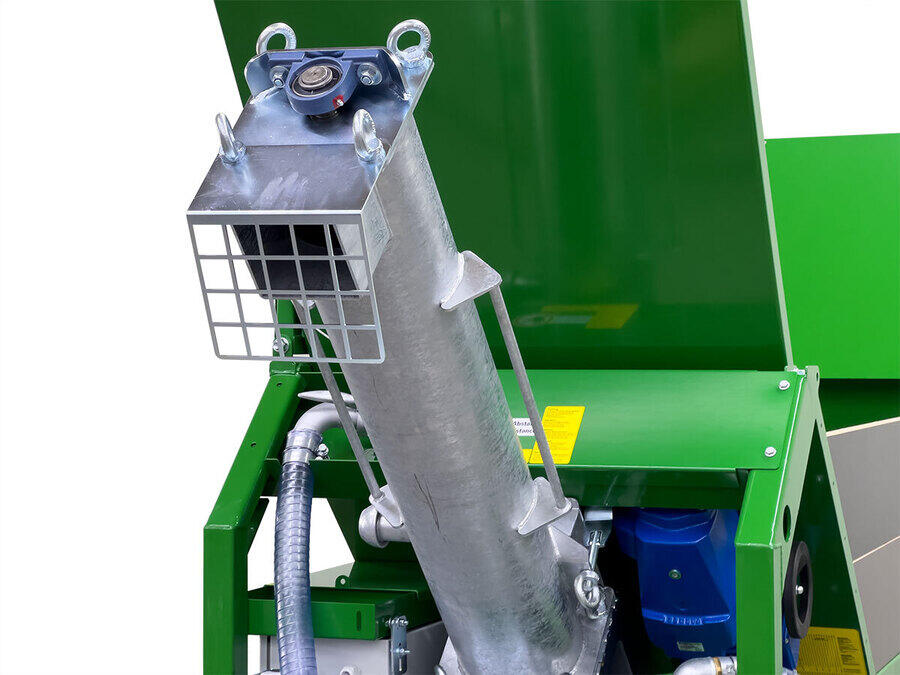

Powerful and compact M6004 is a highly e ffective and clean solution for the homogeneous mixing of rubber granulate with single-component binder (polyurethane). A gravel unit or a second PU pump can be optionally coupled to the basic machine. In conjunction with a modular construction system of various screw feeders, pipes and feeding adapters it is possible to get a wide variety of individual mixtures with precisely measured ratios for many di fferent kinds of surfaces, e.g. recycled granulate base mats.

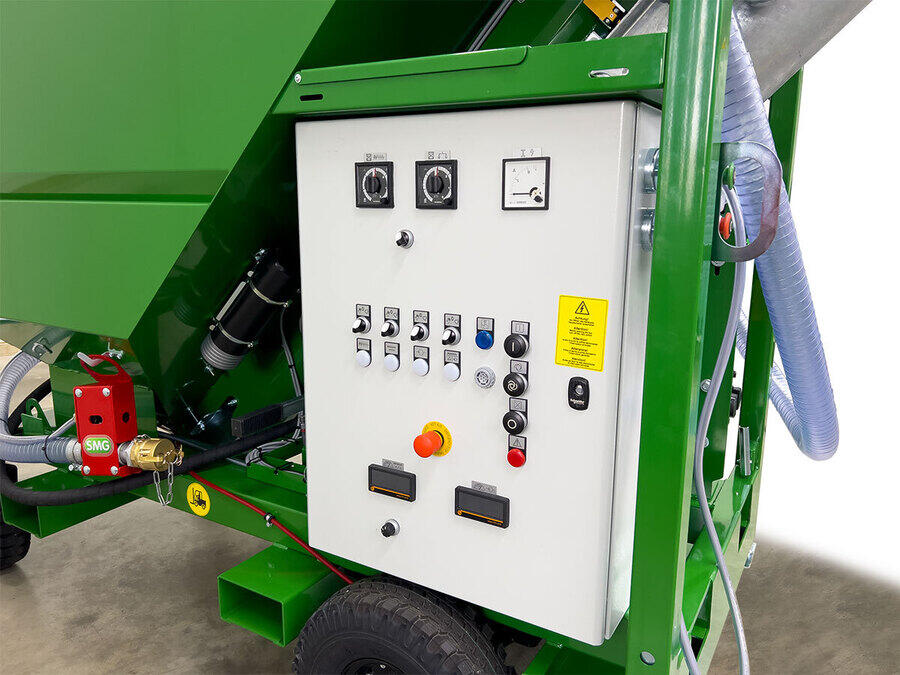

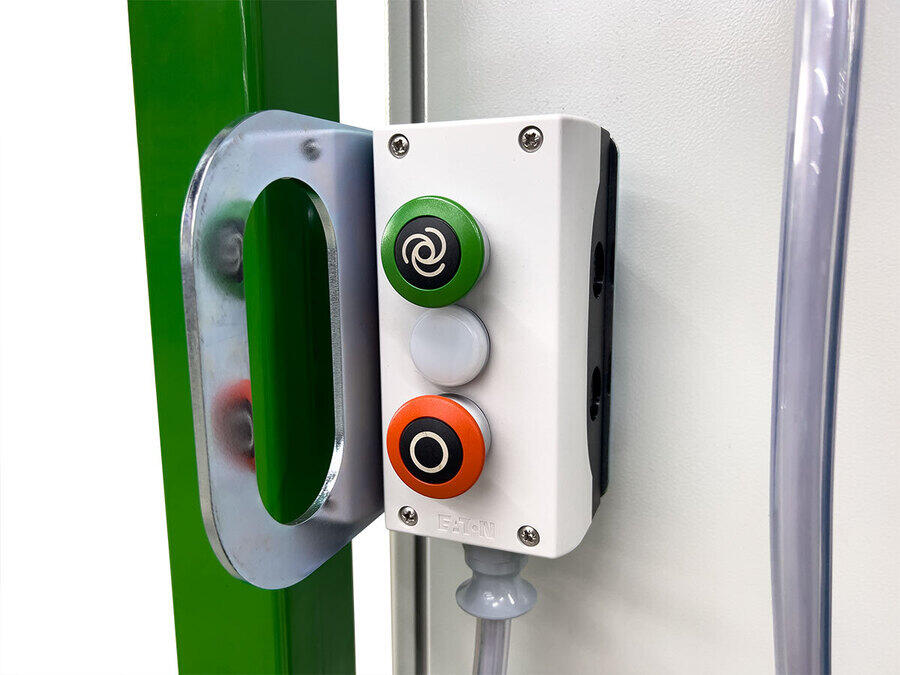

EPDM granulate surfaces, sandwich-systems, PUR-coatings, structural spraying coatings, elastic subbases and others. Switch and control elements for the mixer and the auxiliary appliances are on one common control panel.
Technical information:

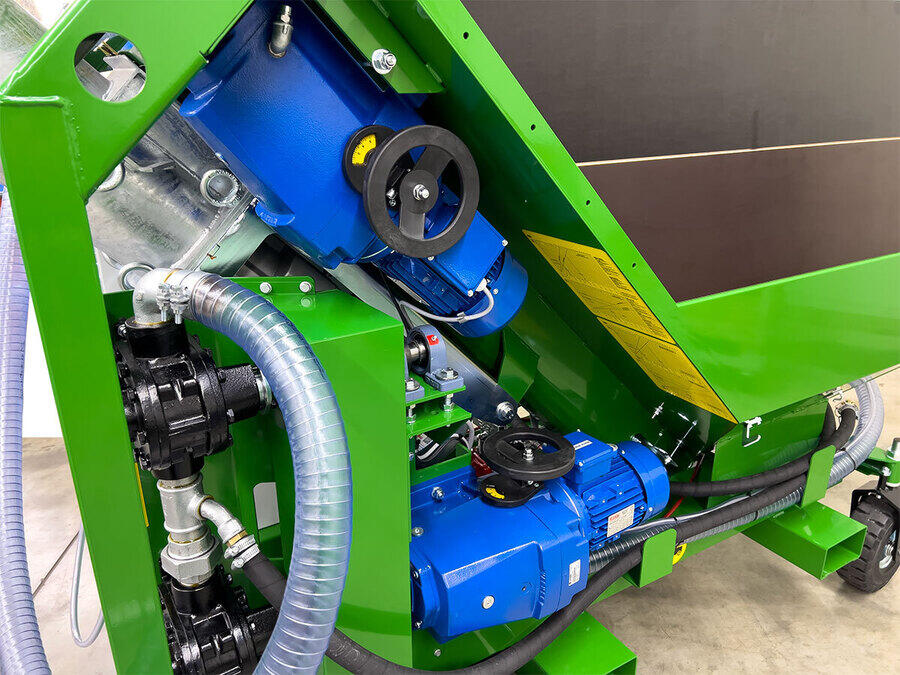

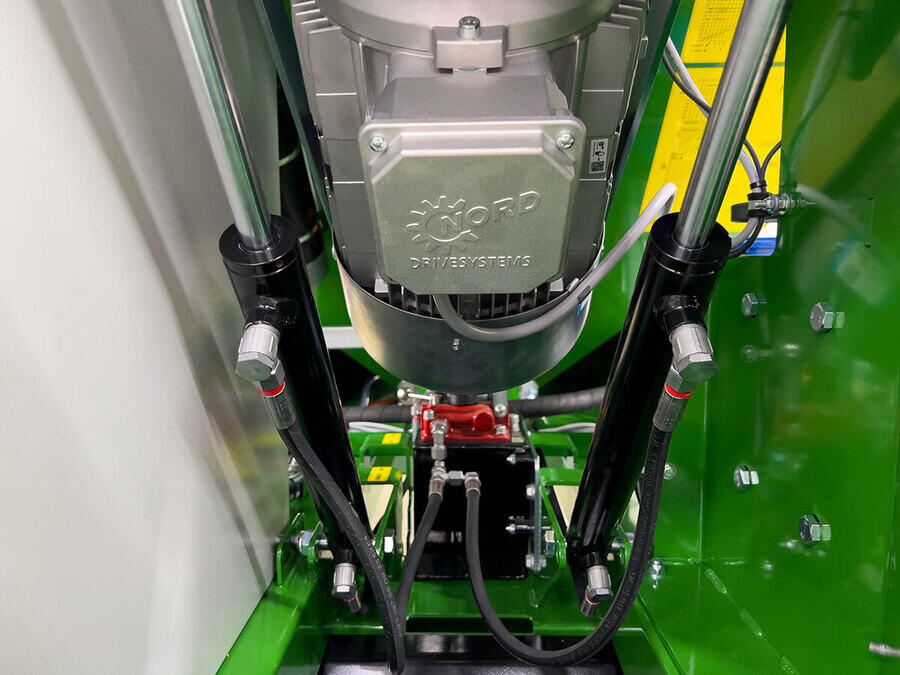

| Drive | 3-phase current for granulate and grit drives; A.C. geared motor infinitely variable, electron. rpm |
| Power | Basic mixer: 12 kW (16,3 HP) / 400 V / 50 - 60 Hz / 22 A Gravel unit: 1,85 kW / 400 V / 50 - 60 Hz / 4.25 A 2nd dosage pump: 1,85 kW / 400 V / 50 - 60 Hz / 4.25 A |
| Mixing capacity | 150 kg / min |
| Weight | Basic mixer: 1,100 kg Gravel unit: 900 kg 2nd dosage pump: 350 kg |
| Dimensions | Basic mixer: L 3,400 x W 1,100 x H 2,800 mm Gravel unit: L 2,250 x W 1,000 x H 1,800 mm 2nd dosage pump: L 1,100 x W 710 x H 700 mm |
| Shipping dimensions | Basic mixer: L 2,300 x W 1,100 x H 2,000 mm |
