Fully automatic paver for elastic layers, elastic subbases and athletic tracks.
Working width up to 3,600 mm (variable), area performance max. 970 m²/h.

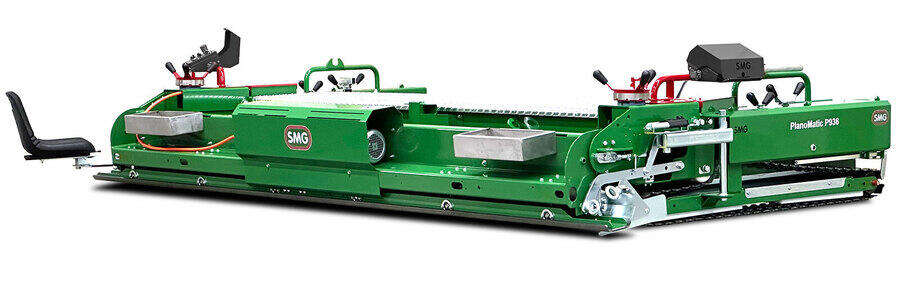

The largest fully automatic SMG paver is PlanoMatic P936. With an installation width of 3,600 mm the P936 achieves a theoretical performance of up to 970 m²/h with a working speed of c. 4,5 m/min.

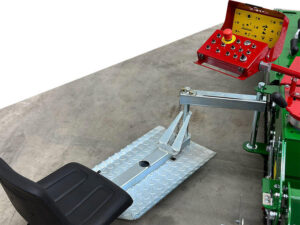

P936 is equipped with an automatic curve control for running tracks and a hydraulic controlled undercarriage. The operator seat can be fixed on the left or right, as required, and is adjustable to provide the most ergonomic position for the operator. In addition, P936 provides for smooth installation with the help of its optional levelling device (sensor/tactile unit). For the optimal surface quality the compaction can be adapted accordingly by adjusting the inclination angle of the screed.

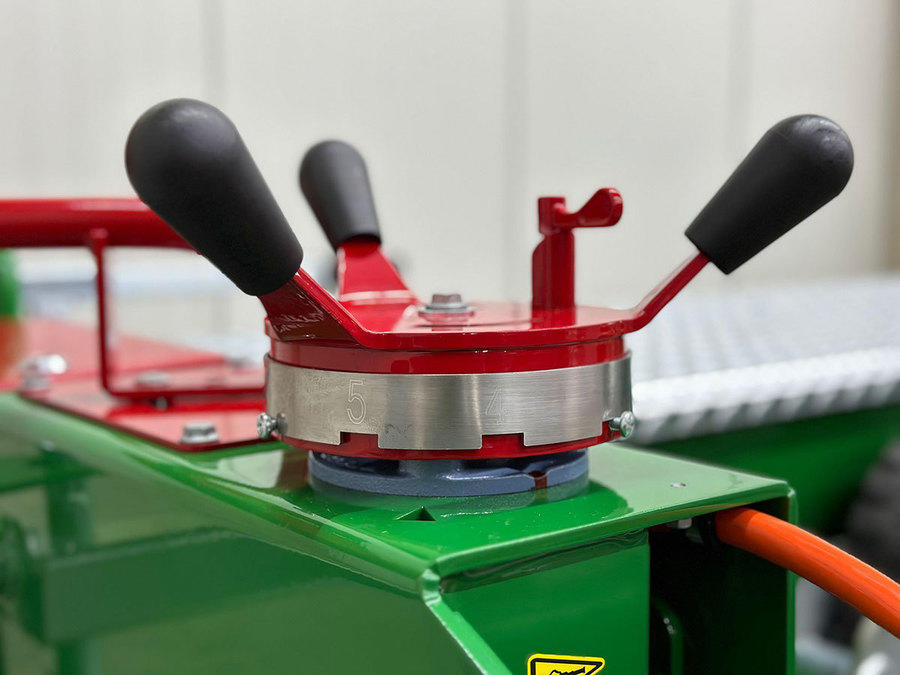

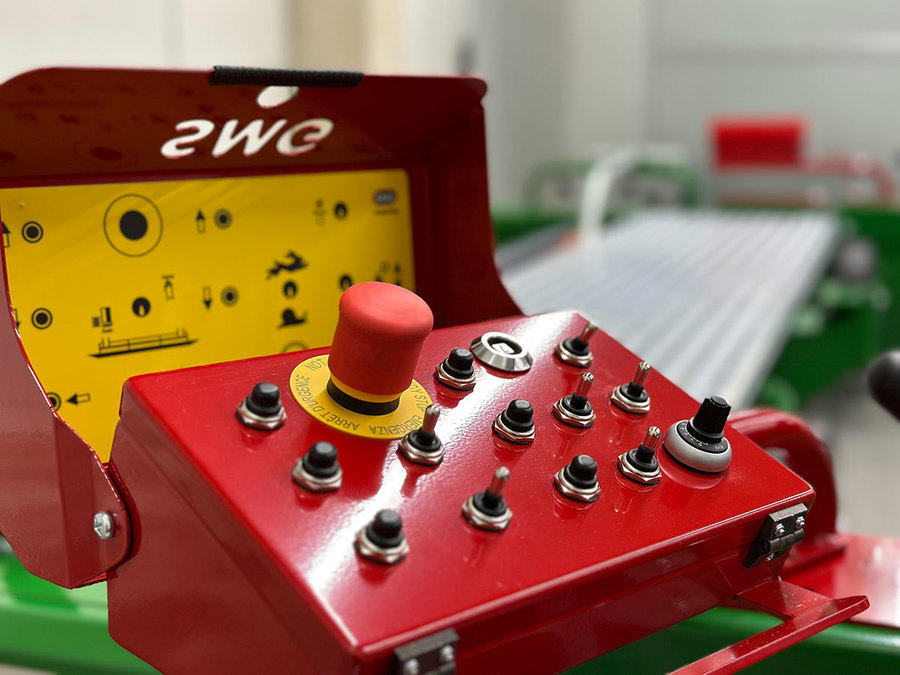

Manual work on seams therefore becomes almost superfluous. Paving thickness settings of 0 - 50 mm can be easily changed by pressing a button located on both sides of the control panel. As an additional option the paver can be featured with a suitable generator.

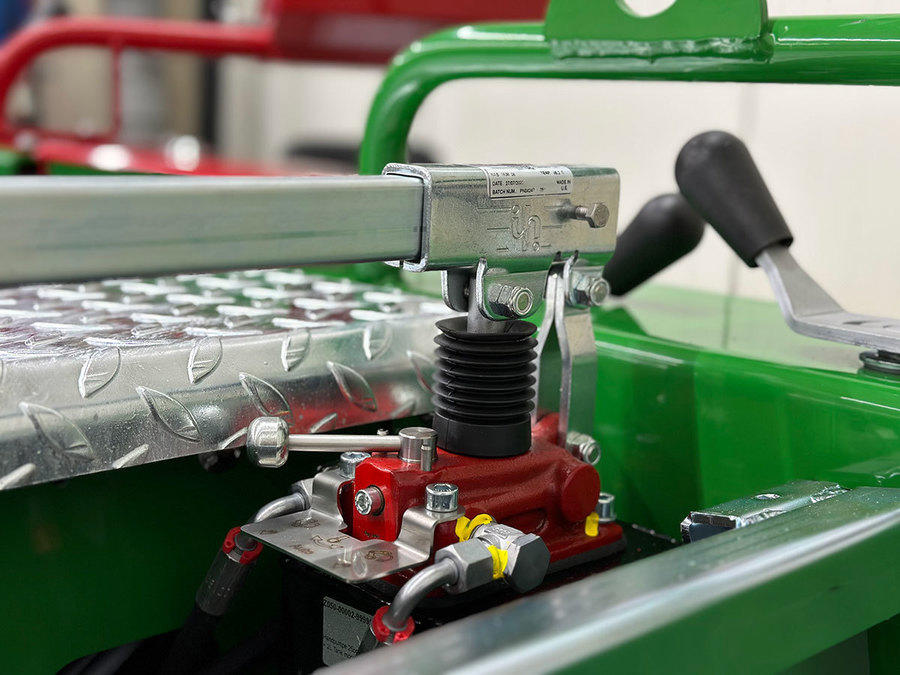

The transport chassis of the P936 is operated electro-hydraulically. An additional hand pump enables a lifting of the machine without external power supply.
Technical information:
| Power | 6,5 kW (8,8 HP) / 3 ph. / 400 V / 50 - 60 Hz / 12 A |
| Traction drive | 2 infinitely variable A.C. gear motors / speed of forward movement c. 0.8 m/min. to 4,5 m/min. |

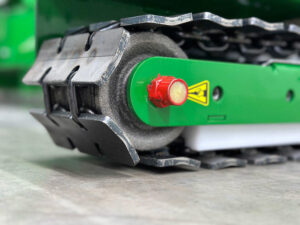

| Chain drive | with standard chains 153 x 50 mm |
| Installation width | up to 3,600 mm (variable) |
| Area performance | 970 m²/h |
| Weight | 1,100 kg (without optional accessories) |
| Dimensions | L 3,700 x W 2,000 x H 700 mm |
| Shipping dimensions | L 3,880 x W 2,270 x H 1,030 mm |
