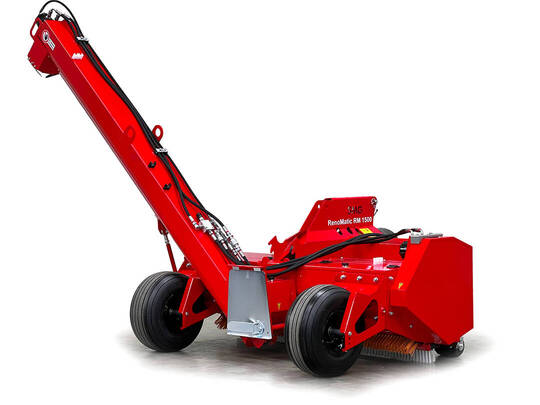

Tractor device for the removal of filling material from artificial turf.
Working width 1,500 mm.

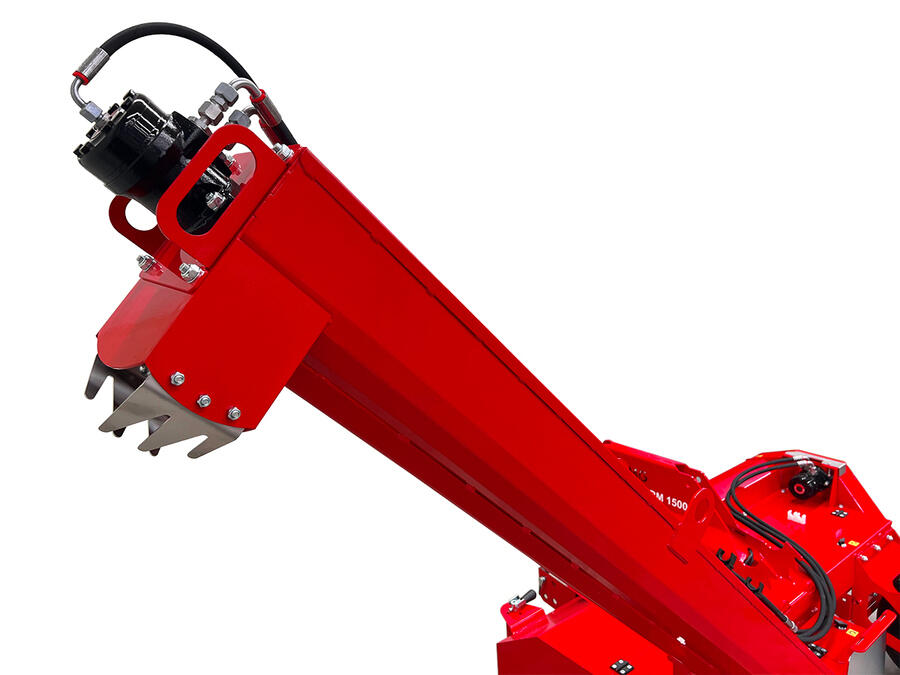

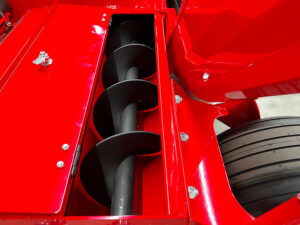

RenoMatic RM1500 is designed to remove sand, rubber granules or organic infill materials from artificial turf surfaces efficiently and precisely. This powerful attachment has a working width of 1,500 mm and is connected to the towing tractor via a 3-point adaptor. The feeding auger is hydraulically driven through a connection to the tractor.

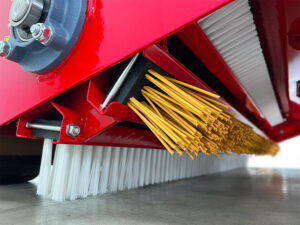

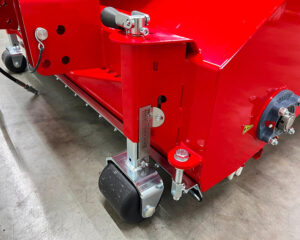

The brush attachment consists of rows of 6 single brushes arranged in the "brush revolver". Rows of brushes of different hardness can be combined to achieve optimum results. By adjusting spindles you can set the degree of infill material removal.
Requirements for using the RM1500:

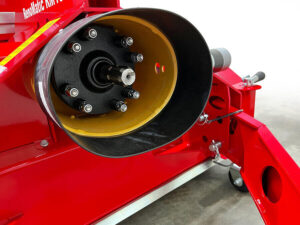

Operation requires a tractor with at least 25 kW (34 HP) drive power and also a 3-point hydraulic hitch. We recommend a continuously variable hydrostatic transmission drive or crawling gear. The PTO must be at 540 rpm.

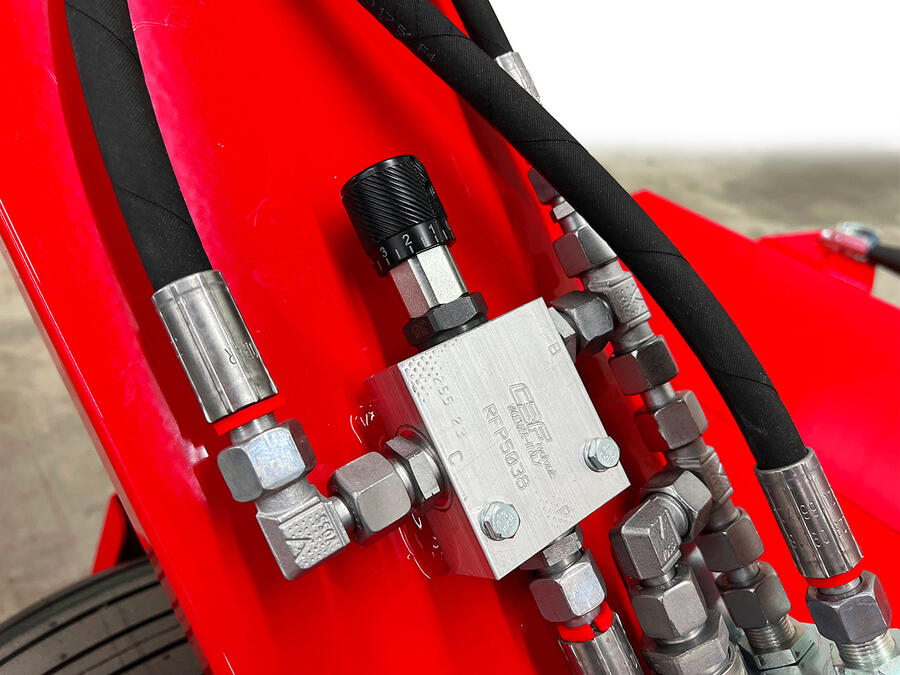

The hydraulic connection requires a capacity of 20 - 30 litres at about 100 bars per minute.
Technical information:
| Working width | 1,500 mm |
| Removal quantity per pass | 20 kg/m² |
| Working speed | 5 m/min |
| Performance | 400 m²/h |
| Drive | PTO and hydraulic |
| Weight | 410 kg |
| Dimensions | L 1,360 x W 1,660 x H 2,000 mm |
| Shipping dimensions | L 1,000 x W 1,700 x H 100 mm |
