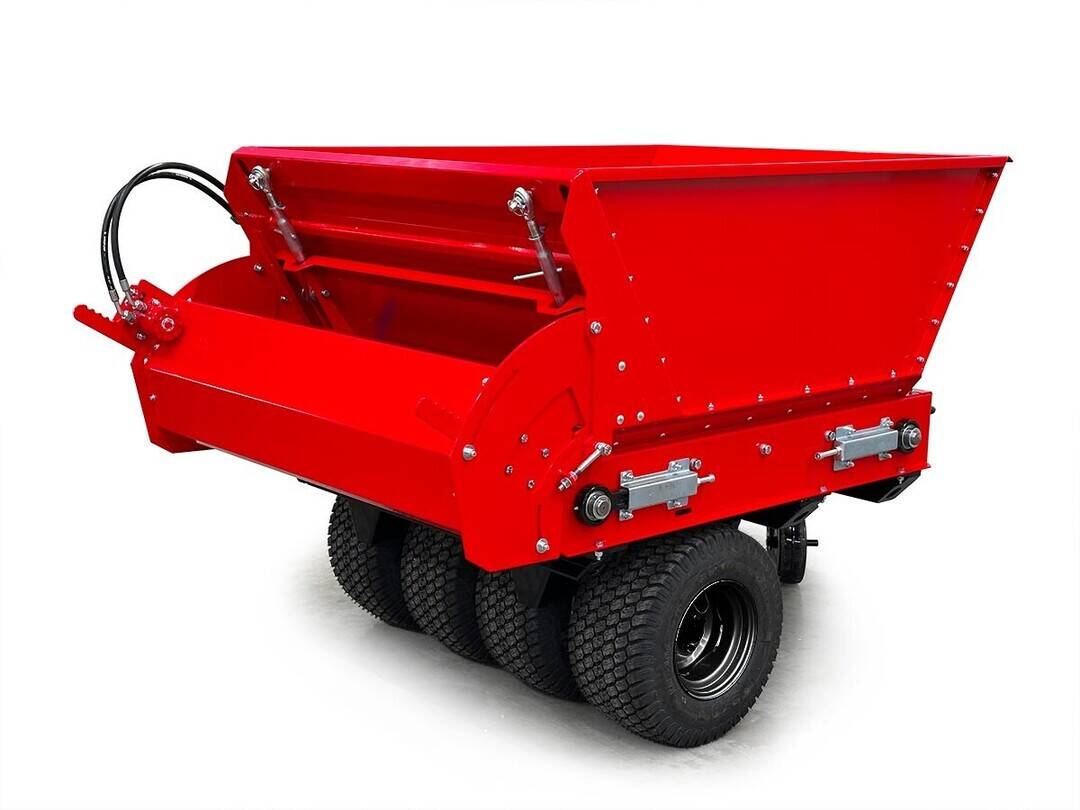

Tractor spreader for all types of artificial turf infill materials
The SP1400 is a versatile tractor spreader designed for the application of all types of infill materials on artificial turf.
The unit is powered by a tractor with an engine output of 20 to 40 hp and requires a feed capacity of 25 liters at 150 bar per minute.

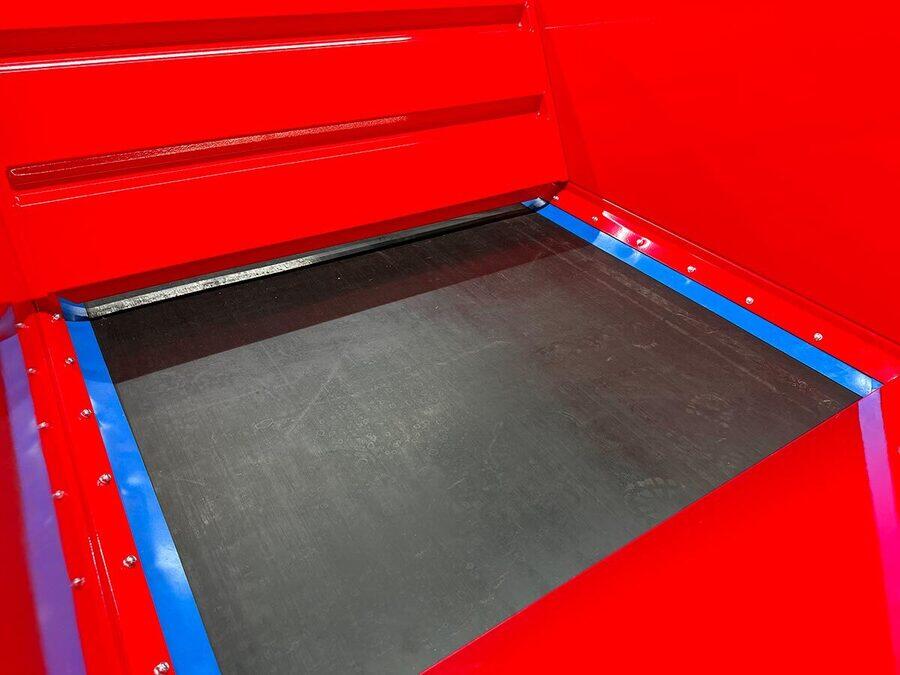

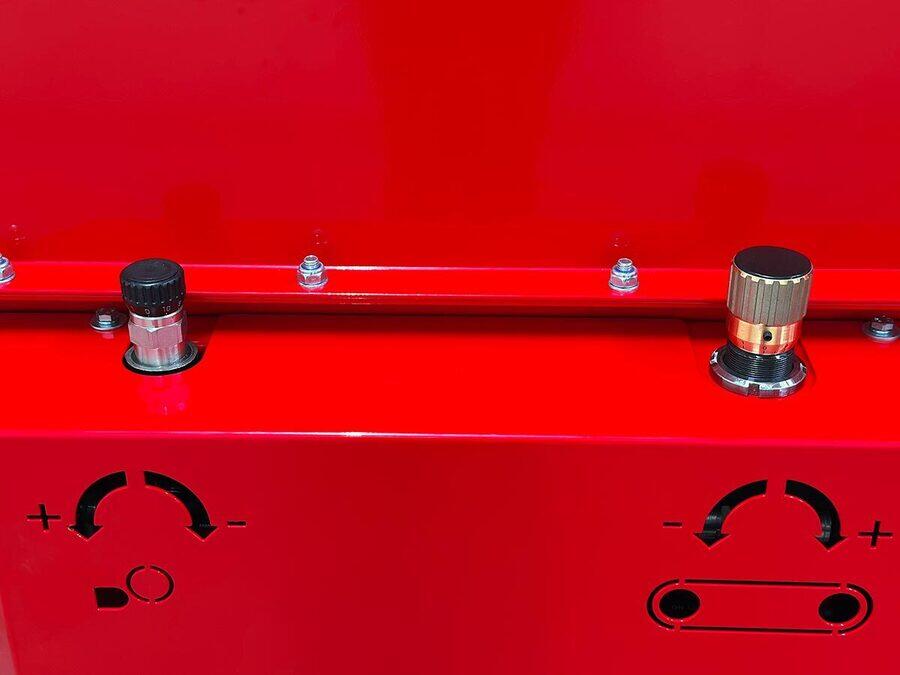

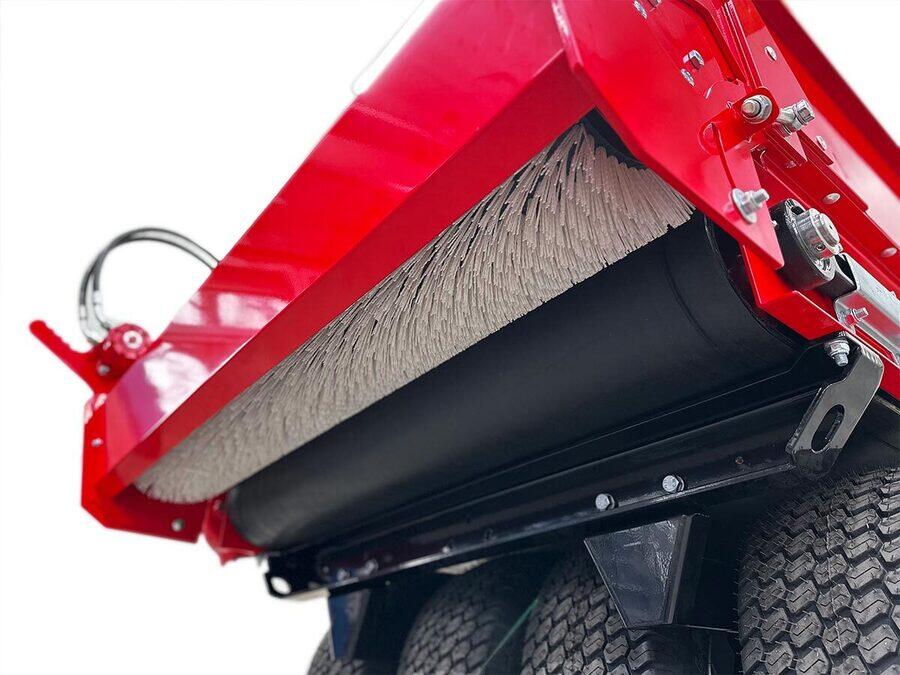

The tractor's rear hydraulics drive both the conveyor belt and the spreading brush. The speeds of these functions can be precisely adjusted via a hydraulic valve.

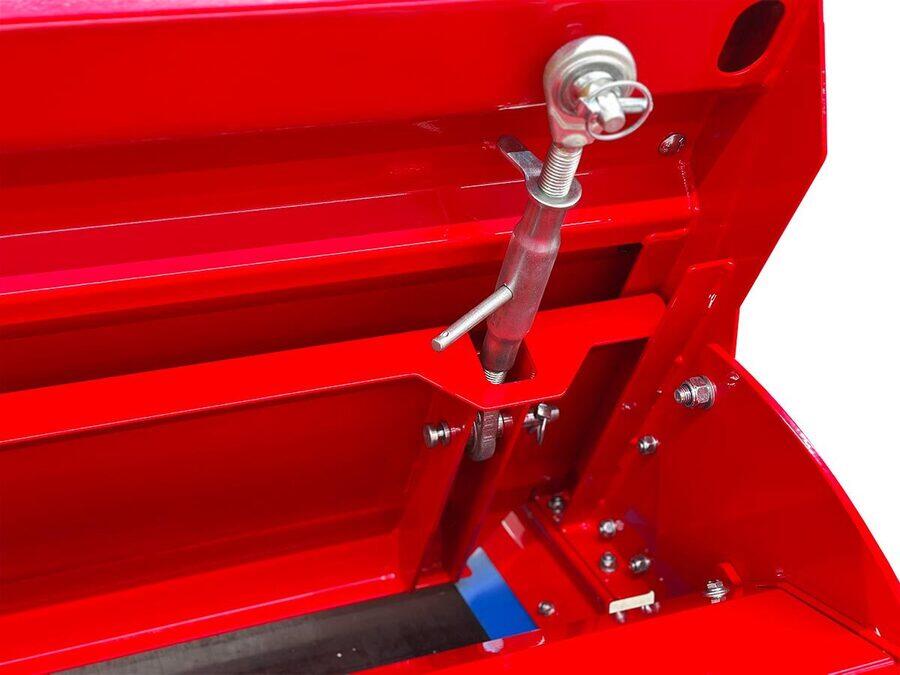

The spread rate is controlled by a dosing slide to ensure even material distribution.
The SP1400 offers a working width of 1,400 mm and is equipped with a material container that has a capacity of 1.0 m³, with an empty weight of only 775 kg.

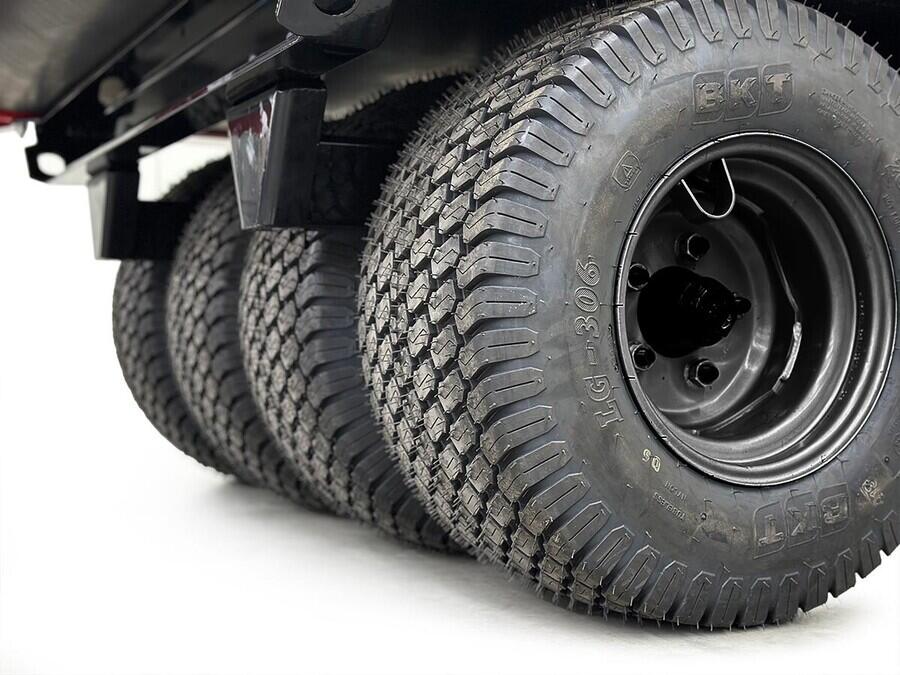

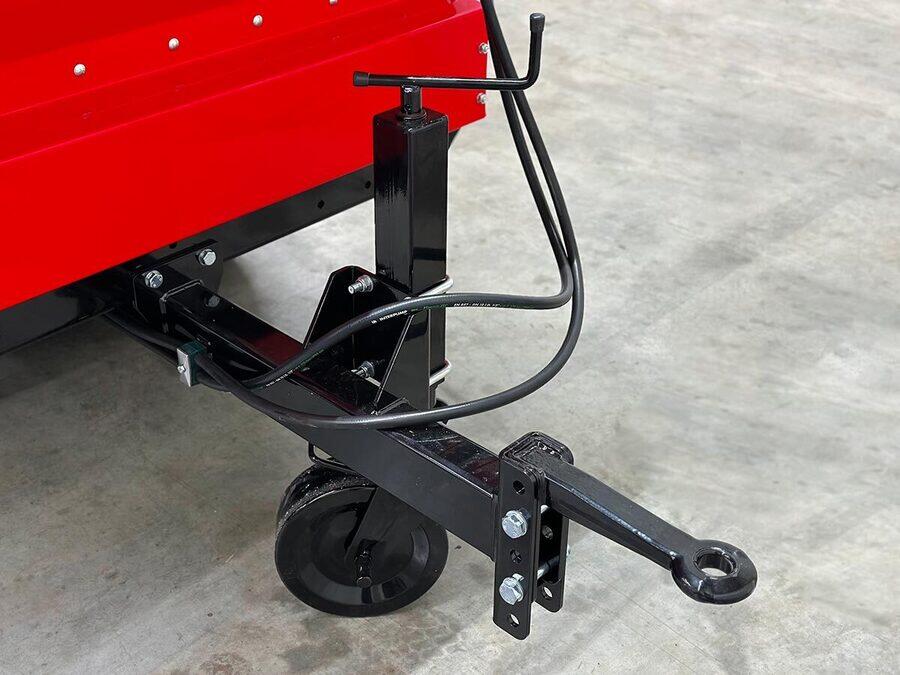

Four large-volume tires provide low ground pressure and uniform weight distribution. For easy storage, the SP1400 is fitted with a stable support wheel on the drawbar.
Performance
Functional
Precise
Practical
Effective
Safety
Light footed

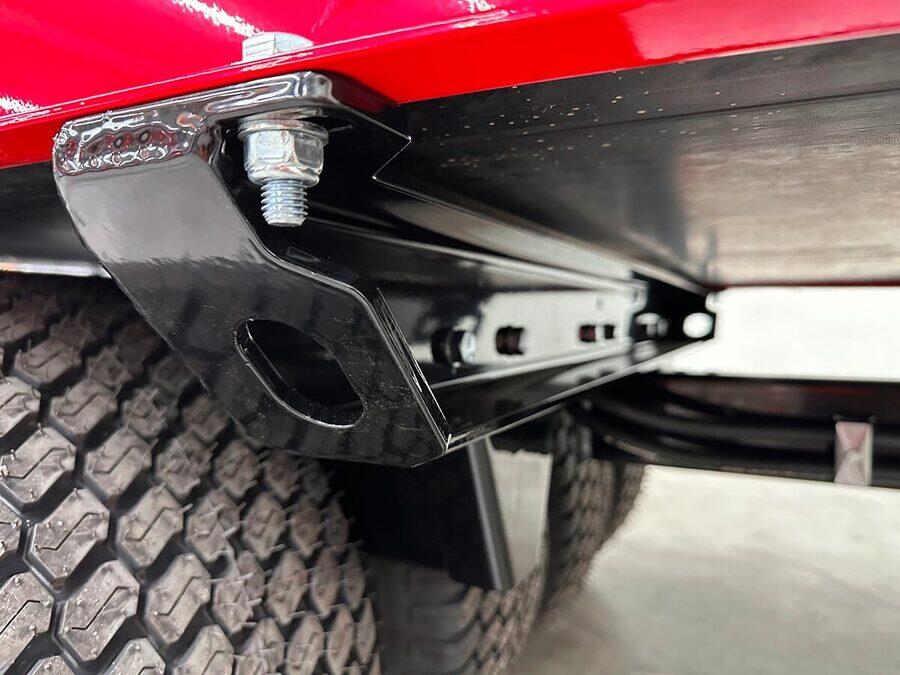

Lashing points
Technical information:
| Spreading width | 1,400 mm |
| Container volume | 1.0 m³ |
| Weight | 775 kg |
| Dimensions | L 3,000 x W 1,700 x H 1,600 mm |
| Shipping dimensions | L 3,350 x W 1,840 x H 1,880 mm |
