StrukturMatic S80B

The StrukturMatic S80 is based on the well-established technology of the SMG StrukturMatic collection. Being the compact version of the S122, the S80 is an ideal replenishment for professional structural coatings on synthetic sports surfaces.

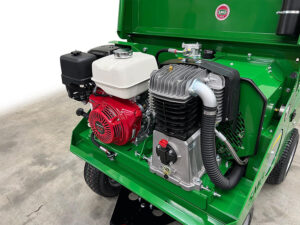

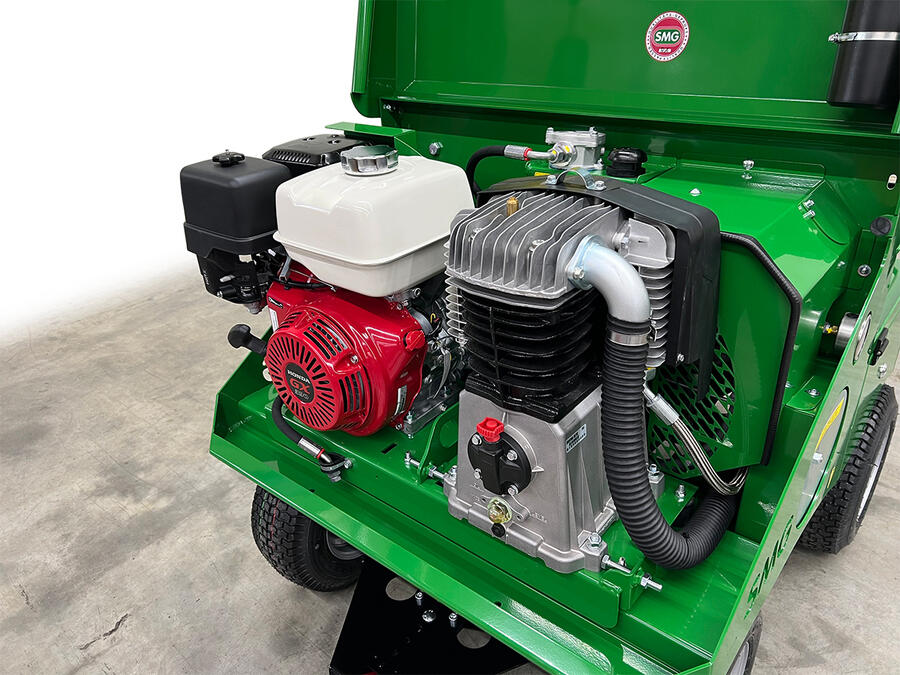

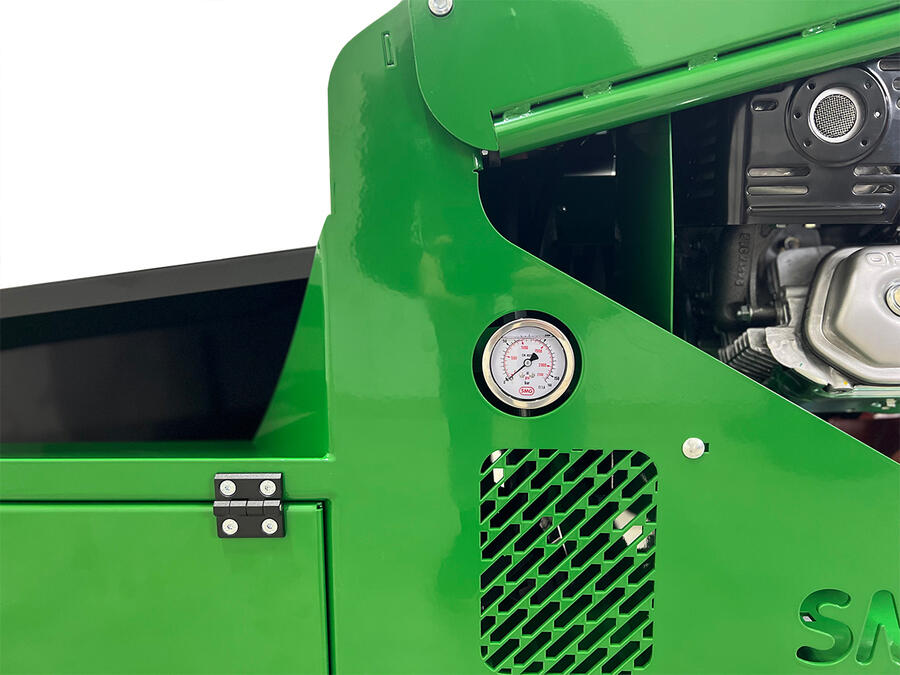

Equipped with a compact and air-cooled Honda 1-cylinder petrol engine or a 8,2 kW (11,1 HP) electric motor, the S80 achieves approx. 12 kg material throughput per minute and thus is nearly as effective as the S122 model. Simple hydraulic components are making the machine reliable and easy to use.

Four large air-filled tires and a weight of only 350 kg reduce the surface pressure and facilitate the machine's operation.

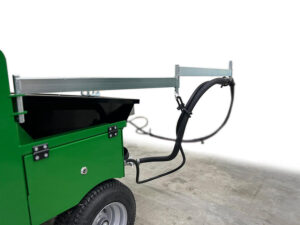

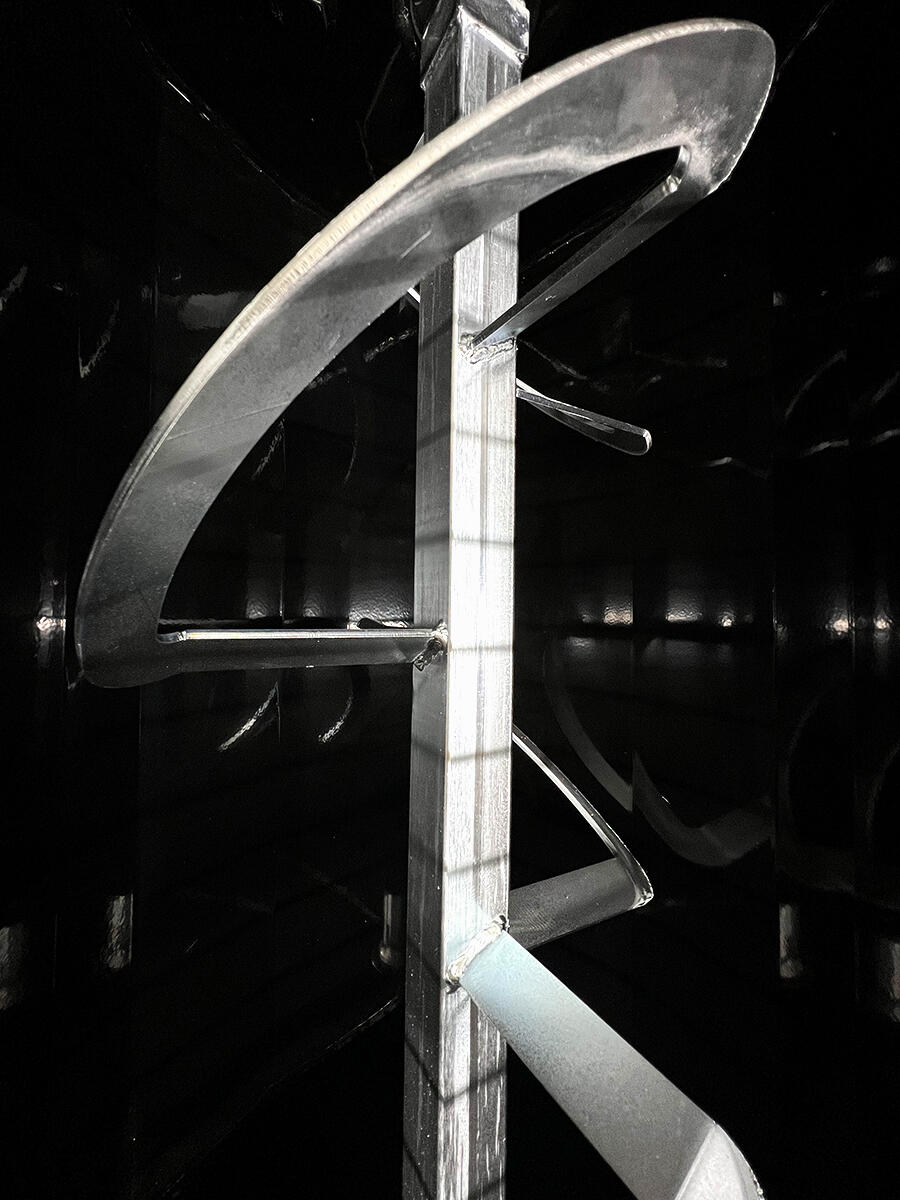

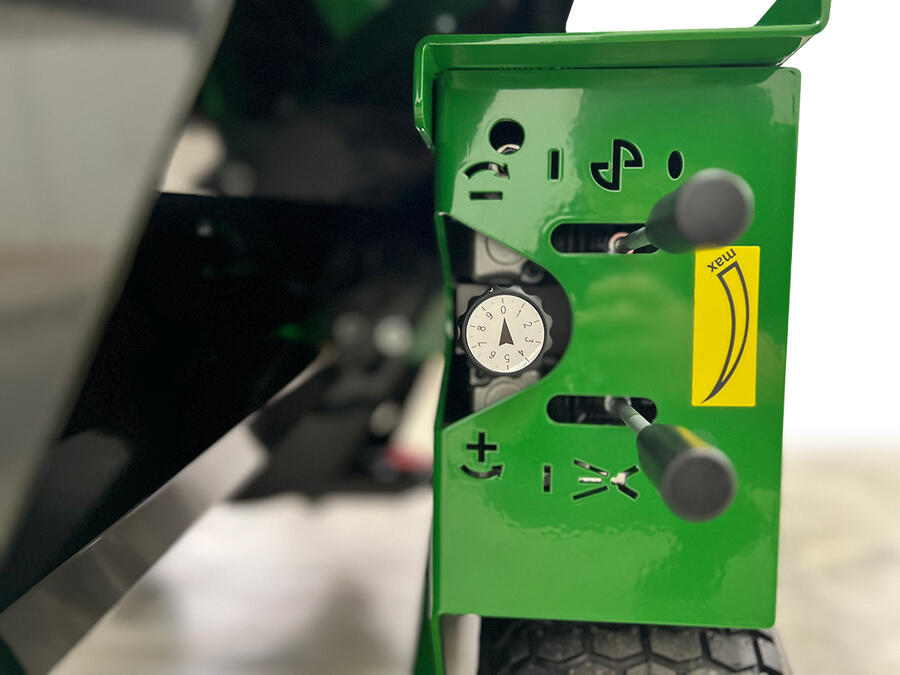

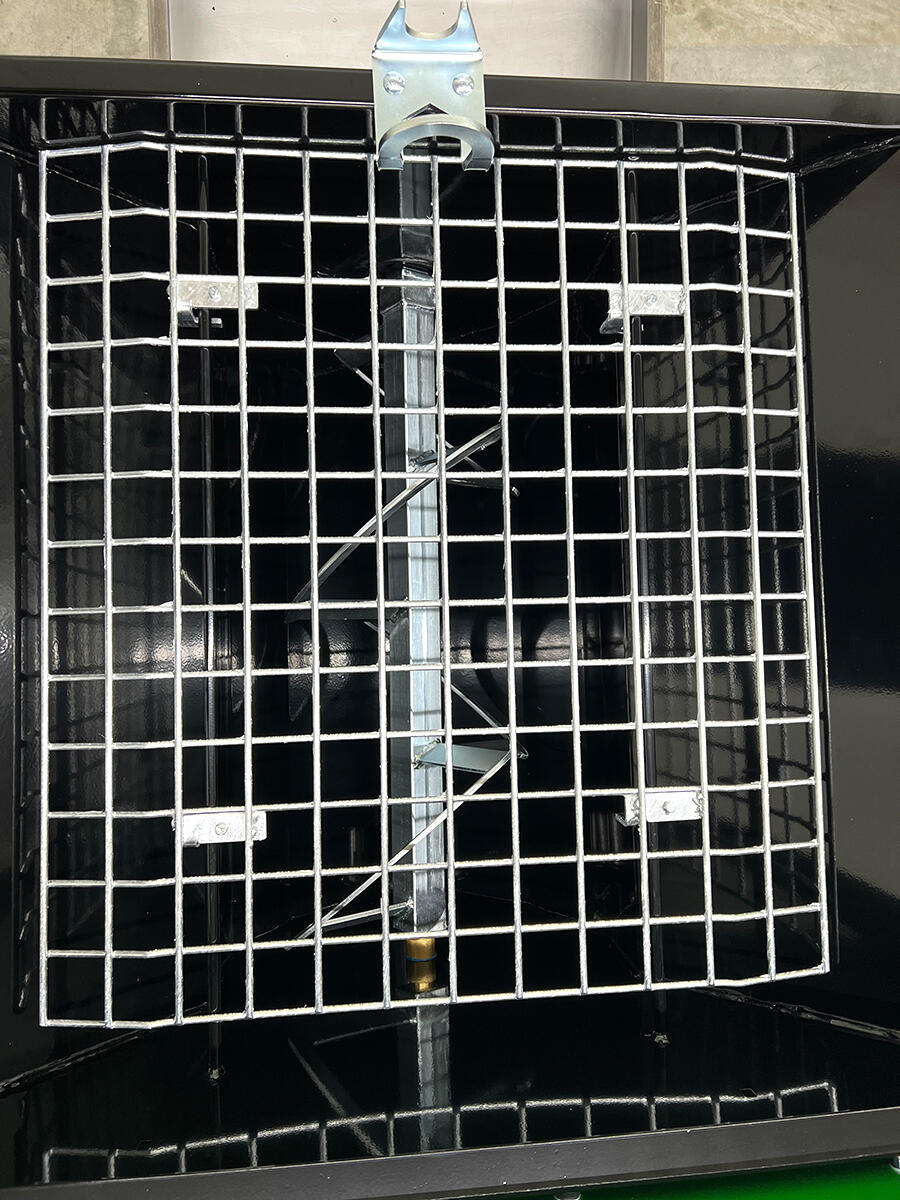

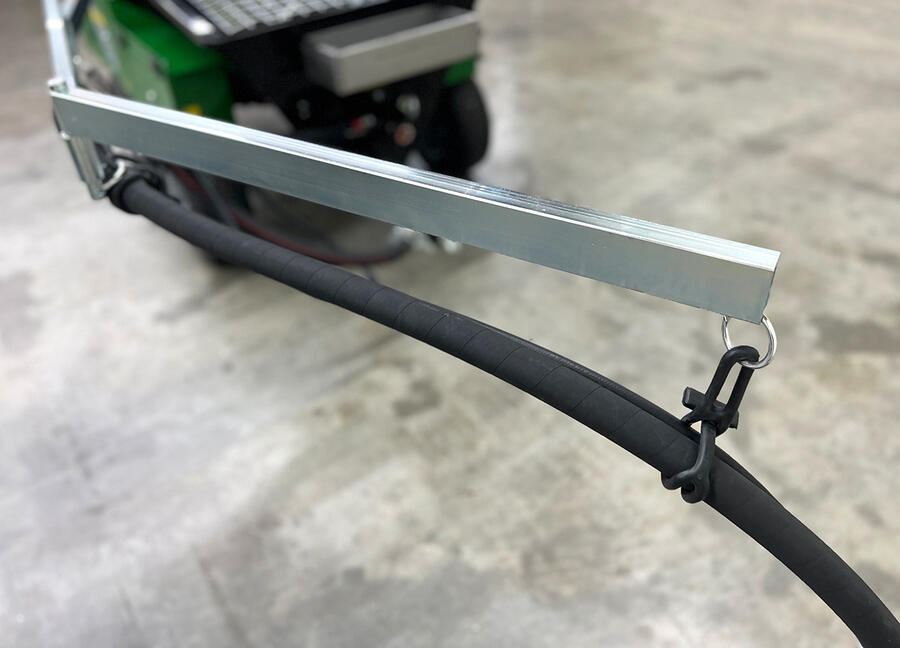

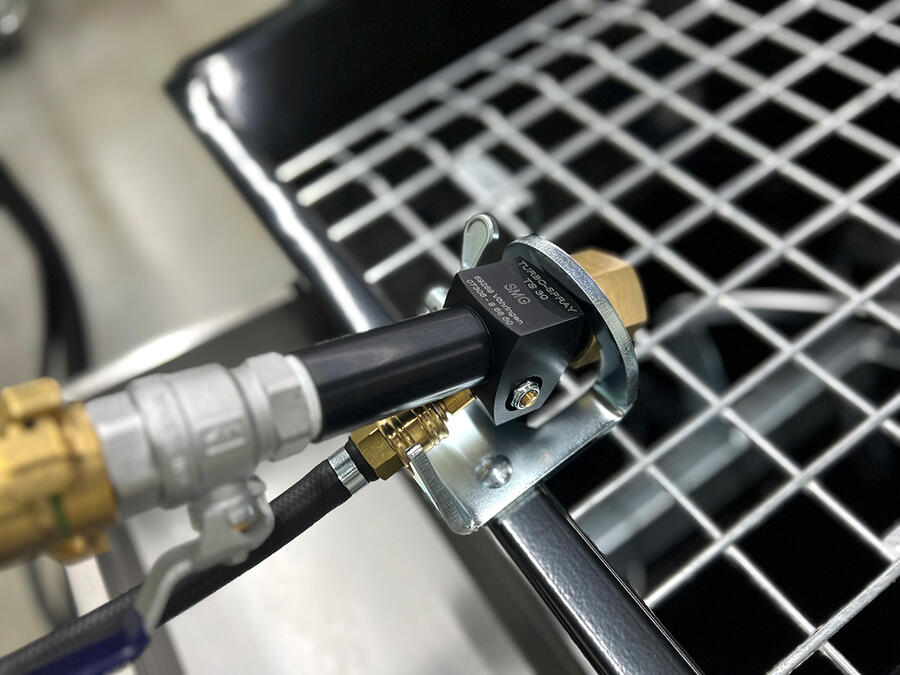

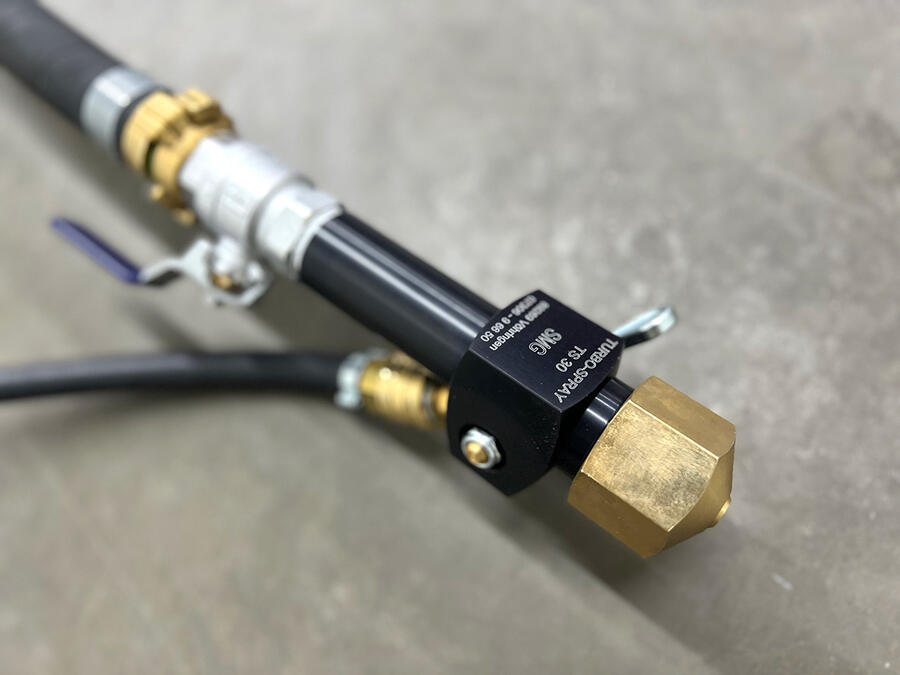

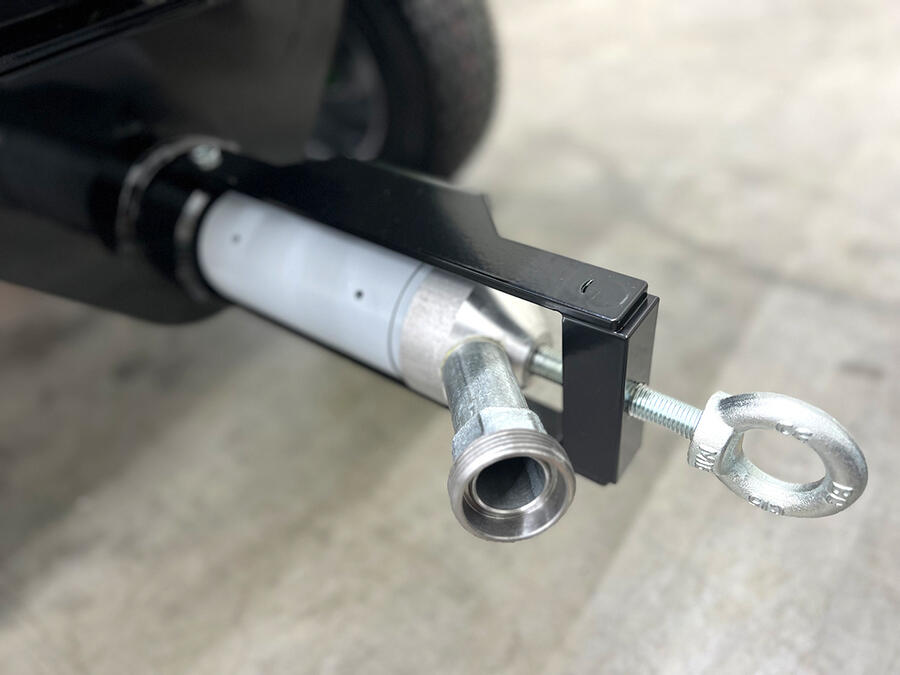

Material container, rotor, stator and the hose set with TurboSpray TS30 are extensively compatible with the S122 collection. Viscous, very compact and coarse-grained structural spraying coatings as well as primer and sealings can be applied by using different nozzles. Thanks to the variable hinged arm, it is possible to achieve an action radius of 10 metres. Controllable pump pressure and adjustable air quantity reduce the spray vapour and produce a homogeneous spray finish at highest performance.
